DIGITAL TEMPERATURE GAUGES

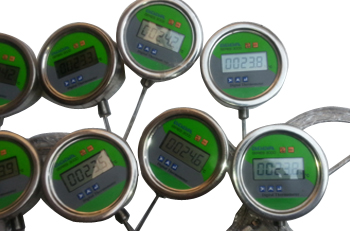

DIGITAL TEST TEMPERATURE GAUGES:
MODEL – ADG 3000
Dial Size Display:
3.5" Dial size x 5 Digit LCD Display
High resolution Imported Sensor gauge
Range:
(-) 150 to 600 Degree Celsius / Fahrenheit via RTD / K type thermocouples
Or as per client requirements
Accuracy :
0.50% or 1.0% FSD
Mounting:
Available Rigid type in Horizontal or Vertical Mounting
Casing: SS 304 Casing with Bayonet bezel weatherproof type, Flame proof “DIGISAFE”. Aluminum, Suitable for GAS I/IIA/IIIB
Capillary:
Upto 30 meter SS304 (2 way) bore Capillary can be available
Stem: 8mm x 300mm (available upto 900mm Length)
Display :
5 Digit LCD Display 15mm
On / OFF, CAL
Low Battery
| Thread Connection | 1/2" NPT / BSP M |
| Power Supply | 6 VDC (1.5V X 4No Alkaline) Duracell type MN1500-LR6 |
| Display | 5 digit 15 mm high LCD |
| Input/Range | K Type -150.0 to 1350.0 |
| Resolution | 0.1 ‘C |
| Battery life | 2 Year continuous approx. |
| Low Battery | Provided |
Digital Temperature Indicator - YG 401
Model YG 401 Digital Temperature Indicator Micro-controller based, micro-power, precision general purpose thermometer designed for used with type J, K, T, R, S, & RTD – PT100 sensors.
Display:
5 DGT 15 mm high LCD
Input:
J, K, T, R, S, PT100
| Range: | Accuracy | Ordering Code | |
| PT-100 | -150 to 800 oC | 0.1 % of FS | 9200P |
| K | -150 to 1350 oC | 0.1 % of FS | 9200K |
| J | -100 to 1000 oC | 0.1 % of FS | 9200J |
| T | -100 to 400 oC | 0.1 % of FS | 9200T |
| R | 0 to 1750 oC | 0.1 % of FS | 9200R |
| S | 0 to 1750 oC | 0.1 % of FS | 9200S |
CJ Compensation:
Automatic of 1oC Accuracy
Effect of Lead Wire:
RTD - 1oC for 10% of nominal resistance per lead of 3 wire RTD's
T/C's - 1oC for T/C lead wire resistance of 100 Ohm.
Resolution:
0.1oC
Power supply:
6 VCD (1.5 V X 4 No Alkaline) Recommended DURACELL type MN1500-LR6
LOW Battery :
Provided
Enclosure Size:
80 X 140 x 22 mm approx
Supplied with leather case. :
