Thermal Mass Flowmeters

Thermal Mass Flowmeters are suitable for all industrial and test rig applications that demand quick and precise gas measurement. It directly indicate the mass flow or normalized volume flow of gases without any additional pressure and temperature compensation. The flowmeters have an impressively high accuracy, short response time and a very wide flow range with virtually no loss of accuracy even at the lowest flow rates

principle

Thermal sensor consists of two sensing elements - a velocity sensor and a temperature sensor that automatically corrects for changes in gas

Thermal Mass Flowmeters

temperature(figure1). The transducer electronics heats the velocity sensor to a constant temperature differential above the gas temperature and measures the cooling effect of the gas flow. The electrical power required to maintain a constant temperature differential is directly proportional to the gas mass flow rate.

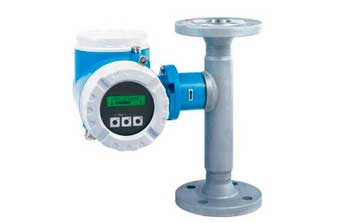

INLINE THERMAL MASS FLOW METER

  • Pipe Line size: 25, 40, 50, 80, 100, 150, 200, 250, 300, 400
  • Explosion Proof : 1: Yes, 2: No
  • Installation Form: Integral, Remote, Submerge type
  • Output Signal: 1. Normal 4 to 20 ma,
  • Communication Output
  • Wetted Part M.O.C: 1 cr18Ni9Ti, 316L
  • Protect Class: IP 65, IP 68
  • Pressure: 1. 2.5 Mpa, 2. 6 Mpa, 3. 20 Mpa
  • Max. Flow Rate: Nm3/Hr. Kg/Hr, T/H
  • Medium

INSERTION THERMAL MASS FLOW METER

  • Pipe Line size: 25, 40, 50, 80, 100, 150, 200, 250, 300, 400
  • Explosion Proof : 1: Yes, 2: No
  • Installation Form: Integral, Remote, Submerge type
  • Output Signal: 1. Normal 4 to 20 ma,
  • Communication Output
  • Wetted Part M.O.C: 1 cr18Ni9Ti, 316L
  • Protect Class: IP 65, IP 68
  • Pressure: 1. 2.5 Mpa, 2. 6 Mpa, 3. 20 Mpa
  • Max. Flow Rate: Nm3/Hr. Kg/Hr, T/H
  • Medium

APPLICATION

Thermal mass flow devices are used in a variety of industries and applications where accurate repeatable gas or liquid mass flow is required.

Some of the typical industries and applications are listed below:

  • Industrial And Process Gas Mass Flow.
  • Fuel Flow For Burners And Fuel Cells.
  • Aeration Air And Digester Gas Waste Water Treatment Facilities
  • Compressed Air
  • Natural Gas
  • Combustion Air
  • Metering Semi-conductor Gases
  • Air Sampling
  • General Purpose Mass Flow, Rd.
  • Flow Calibration Standrards
  • Aerospace
  • Analytical/Gas Analyzers
  • Automotive
  • Biotech/Pharmaceutical
  • Chemical/Petrochemical
  • Electronics Manufacturing
  • Food & Beverage
  • Fuel Cells
  • Furnaces
  • Heat Treating
  • LED Lighting
  • Medical
  • Metal Processing
  • Packaging
  • Solar/Photovoltaic
  • Semiconductor Manufacturing¬†
