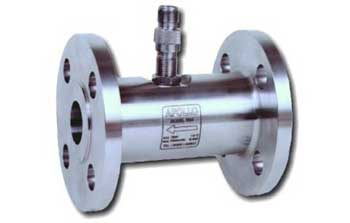

Turbine Flow Meter

Thermal Mass Flowmeters
Thermal Mass Flowmeters

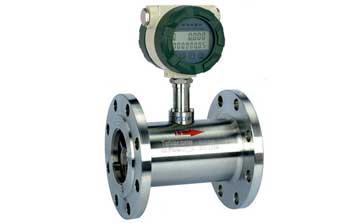

The SS Turbine Flow Meter is widely demanded in the market due to the unmatched quality and unsurpassable performance. The flowing media engages a vaned rotor causing it to rotate at an angular velocity proportional to flow rate. The pick-up coil senses the spinning motion of the rotor inside the pipe converted to mA signal by electronic circuitry. Additionally, customers are eased with the availability of the Gas Turbine Flowmeter confirming to international standards.


  • Simple & cost effective construction.
  • Provides wide flow ranges.
  • Outstanding accuracy for clean & low viscosity applications.
  • Operates over wide ranges of temperature & pressure.
  • Additive features of remote control unit for programming.
  • Flame proof, IP-65, Gr.I, IIA, IIB, CMRI certified housing for display.

Technical Specifications of Turbine Flow Meter

Media Liquids (Clear)/Compressed Air
Line Size 0.5”to 10"
Temperature 20C~120C
Output 4~20mA DC and Pulse(Standard)
Power Supply AC 85~230V, 50/60Hz or DC 24V or Battery (3 year)
Operating Temperature -20 ~ 120 Deg C
Ambient Temperature -20 ~ 50 Deg C
Accuracy 1.0 %, 0.5%
Output Signal 4~20mA DC and Pulse (Standard)
Display L C D 2 Line x12 character (Rate Flow /Total Flow)
Service Clear Liquid, Gases ,Air, solvent.
Enclosure IP67,IP65
MOC Body - SS 316 /Teflon /PP, Flange -SS 316 / Teflon / PP, Rotor - SS 410 (Optionally Teflon coated)
Process Connections Flanged, Threaded
Enclosure Flame-proof, IP-65, Gr.I,IIA, IIB, CMRI Certified
Mounting In-Line, Horizontal

Turbine Type Flow meter provides wide flow ranges, outstanding accuracy for clean & low viscosity applications, additive feature for remote control unit of programming, flame proof, IP-65
* Mounting: In Line / Insertion.
